High Efficiency Durable Coal Dryer Cement Lime Stone Rotary Kiln
Advantages of Lime Rotary Kiln
1.Advanced structure,low pressure loss of vertical preheater can
effectively improve the preheating effect,after preheated limestone
enter into kiln,the decomposition rate can achieve up to 20-25%,and
can use 10-15mm fine grade limestone directly.
2.Rotary kiln each ends are modular sealing.So that air leakage
coefficient less than 10%,using composite refractory to reduce
radiant heat loss.
3.Filling,Can partition ventilation round or square upright
cooler,make sure the lime outlet from cooler temperature
800C+environment,easy to transport,store,and the secondary air into
the furnace preheated to 7000C or more,reducing the moving parts
and special materials.

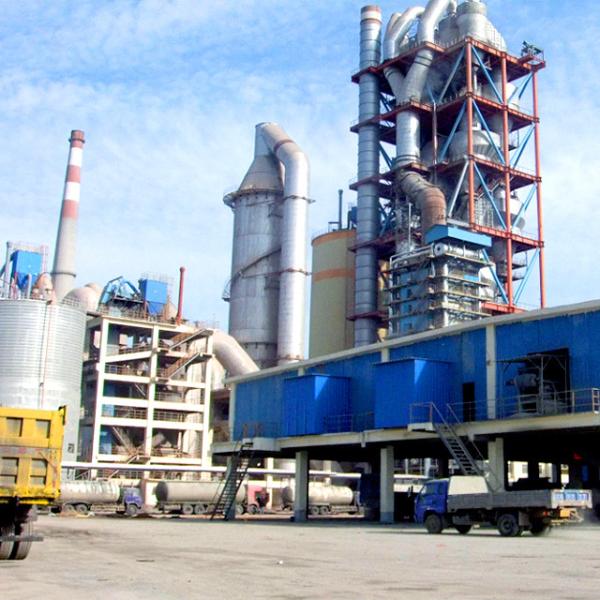

Kiln Cement Active Lime Rotary Kiln Plant Production Line
Introduction of Rotary Lime Kiln
According to the calcination character of limestone, lime rotary
kiln is specialized design for production of active lime. This type
of kiln can work with vertical preheater and vertical cooler to
achieve the advantages like high use ratio of raw materials,
complete calcination, even quality, good quality lime, high
capacity output, environmental and energy saving, simple operation
and longer working life. This kiln is very suitable for limestone
calcination for industries like metallurgy, chemical, construction
materials and etc.
Working Process of Lime Rotary Kiln
Limestone and fuel into the lime kiln (if fuel gas pipelines,and
the burner into) began to decompose after preheating to 850
degrees,1200 degrees to complete calcination,after cooling
discharged out of the kiln.
Quick lime production is completed. Different kiln form have
different preheating,calcination,cooling and discharging mode.
But there are several process principle is the same:
high quality raw material,lime quality is good;
Fuel high calorific value,less number of consumption;
Particle size of limestone and the calcination time is proportional
to the;
Quick lime activity degree and calcination time,calcination
temperature is inversely proportional to.
Features of Rotary Lime Kiln
Rotary kiln cement plant is used for calcinating high standard
cement in cement factories, but also widely used in metallurgy,
construction and chemical industry.
The rotary kiln produced by our factory has strong structure,
smooth operation, and high quality products. Besides, we provide
our customers with advanced and efficient shaft preheater and five
stage cyclone preheater.
Main Technical Parameters:
| Design Capacity(t/d) | 150 | 300 | 600 |
| Product | Active Lime | Active Lime | Active Lime |
| preheater | Vertical Pre-heater | Vertical Pre-heater | Vertical Pre-heater |
| rotary kiln | size (m) | Φ2.5×40 | Φ3.3×50 | Φ4×60 |
| Effective Volum (m3) | 142 | 292 | 575 |
| Burning temperature | ≤1250 | ≤1250 | ≤1250 |
| cooler | Grate Cooler | Grate Cooler | Grate Cooler |
| fuel | Gas
Coal Dust | Gas
Coal Dust | Gas
Coal Dust |
| Heat Consumption(kJ/kgCao) | 5000-5300 | 5000-5300 | 5100 |
Parameter of lime stone kiln rotary:
| size (m) | Φ2.5×40 | φ2.8x42 | Φ3x46 | Φ3.2x50 | φ3.2x54 | φ3.6x56 | φ3.8x58 | Φ4x60 | Φ4.3x58 | Φ4.3x64 | Φ4.8x68 |
Effective
Volume (m3) | 142 | 190 | 235 | 292 | 390 | 430 | 505 | 575 | 670 | 738 | 1005 |
Burning
temperature
(°C) | 1350/1250 | 1350/1250 | 1350/1250 | 1350/1250 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| capacity (t/d) | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | 1000 |
other product:
Magnesium oxide rotary kiln
Lime rotary kiln
Cement rotary kiln
Chemical rotary kiln
FAQ
Q1: How long is the warranty of the rotary kiln?
A1: Our warranty period is one year generally.
Q2: How long shall we replace the refractory brick?
A2:Usually 6-12 months(Depends on the time and temperature.)
Q3: Can l visit your factory?
A3:Yes. We warmly welcome you to visit our factory.We will take you
to our customer site to have a real look.We will arrange a car to
pick you up at the Xinzheng International Airport.
Q4: Do you provide equipment operation training?
A4:Yes.We can send professional engineers to the working site for
installation, adjustment, and operation training. All of our
engineers have passports.
Q5: Do you provide whole rotary kiln flow chart?
A5:Yes. Our experienced engineers are specialized in designing
process flow for various project, such as cement production line,
quick lime production line,magnesium production line etc.
Q6: Can you test our samples?
A6:Yes.You can send your samples to us for test and analysis.
Q7:How about price?
A7.Yes, we are factory and are able to give you the lowest price
than market one and we have a policy that “for saving time and
absolutely honest business attitude, we quote as low as possible
for any customer, and discount can be given according to
quantity.contact us.
