Hematite Ore Iron Sand Separating Magnetic Separator Machine

Wet Type Magnetic Separator Machine For Raw Hematite Ore Iron Sand Separating Process

Structure of Hematite Ore Magnetic Separator

A basic magnetic separator consists of a magnet of some kind.
Permanent magnet drum magnetic separator can be divided into 3 kinds according to its structure at the bottom of different:
downstream type, counter-current type and half counter-current (semi counterflow) type.

wet type permanent-magnet cylindrical type separator

The machine is widely used for mineral separation, coal washing and chemicals etc,applicable for wet magnetic separation of materials whose size is 6-0 mm and divided into magnetic material and non-magnetic material. The separated strong magnetic material has the coefficient of magnetization X not less than 3000×10　6cm3 / g, such as magnetite, and pyrrhotite etc. The hematite, limonite and iron ore must be pre-selected and magnetizing roasted for the separation.

The same cylinder can be equipped with three slots, half counter-current slot (CTB); Downstream slot (CTS) and counter-current slot (CTN), applicable for different technologies of separation.
The CTB applies for 0.5-0mm ore size of strong magnetic minerals of wet coarse and fine separation, especially suitable for the size of 0.15 ~ 0mm mineral fine separation.
The CTN applies for 0.6 ~ mm ore size of strong magnetic minerals wet coarse and scavenging separation, especially suitable for coal heavy medium recovery.
The CTS applies for 6 ~ of 0mm ore size of coarse and fine separation.
The CTB and CTN can be used in series, improving the concentrate grade.
The magnetic system adopts the high quality ferrite materials or compounded with rare-earth magnetic steel, the magnetic induction of the cylinder is 100 ~ 600mT averagely.

According to the needs of customers, the magnetic separator can be downstream, half-countercurrent, countercurrent, and so on. The magnetic separator has the advantages of simple structure, big processing capacity, convenient operation and easy maintenance, etc.

Technical parameters of Hematite Ore Magnetic Separator

Model	Cylinder diameter(mm)	Tube length(mm)	Cylinder speed(r/min)	Feed size(mm)	Magnetic field strength(GS)	Capacity(t/h)	Power(KW)
CTB6012	600	1200	<35	1-0	1400	3	1.5
CTB6018	600	1800	<35	1-0	1500	6	2.2
CTB7518	750	1800	<35	2-0	1500	10	2.2
CTB9018	900	1800	<35	2-0	1600	20	3
CTB9021	900	2100	<35	2-0	1600	30	3
CTB9024	900	2400	<28	2-0	1600	35	4
CTB1018	1050	1800	<20	2-0	1700	40	5.5
CTB1021	1050	2100	<20	2-0	1700	45	5.5
CTB1024	1050	2400	<20	2-0	1700	50	5.5
CTB1218	1200	1800	<18	3-0	1700	60-120	5.5
CTB1224	1200	2400	<18	3-0	1700	70-150	7.5
CTB1230	1200	3000	<18	3-0	1700	80-180	7.5

Type	capacity(t/h)	Magnetic intensity (OE)	power(kw)	weight(T)
CTB600×900	8-15	1450	1.1	0.91
CTB600×1800	15-25	1500	2.2	1.34
CTB750×1200	25-30	1550	2.8	1.49
CTB750×1800	30-45	1550	3	2.05
CTB900×1800	35-60	1550	4	3
CTB1050×2400	55-90	1550	5.5	5
CTB1200×3000	80-150	1550	7.5	7.8
CTB1500×3000	120-200	1550	11	9.6

Advantages of Hematite Ore Magnetic Separator

1. Simple structure makes it easy to operate and maintain.
2. Max. Magnetic intensity: 8,000 OE.
3. The number of axial magnetic can be adjusted in accordance with material characteristics.
4. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
5. Energy saving & high-efficiency.
6. Also has disaggregating function for sticky and poor-fluidity powders.
7. Stainless steel machine and full-closed operation enable an easy clean.
8. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
9. Magnetic separator can be working under high temperature.

Application of Magnetic Separator

Magnetic Separator are widely used for the wet magnetic separation of materials which particle size less than 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite, etc, but also used for deironing operations of coal, non-metallic minerals, building materials and other materials.

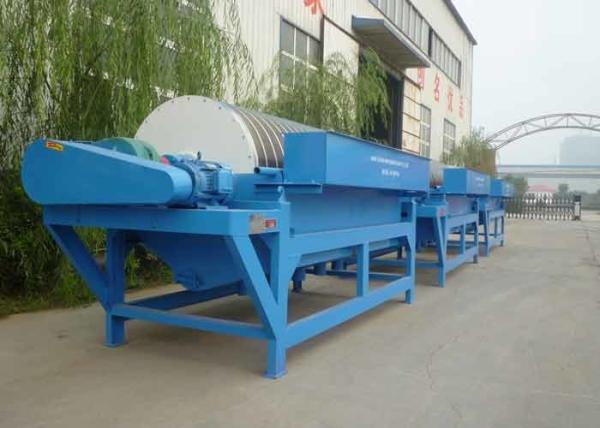

Hematite Ore Iron Sand Separating Magnetic Separator Machine

Magnetic Separator for Hematite Ore Magnetic Separating Process
