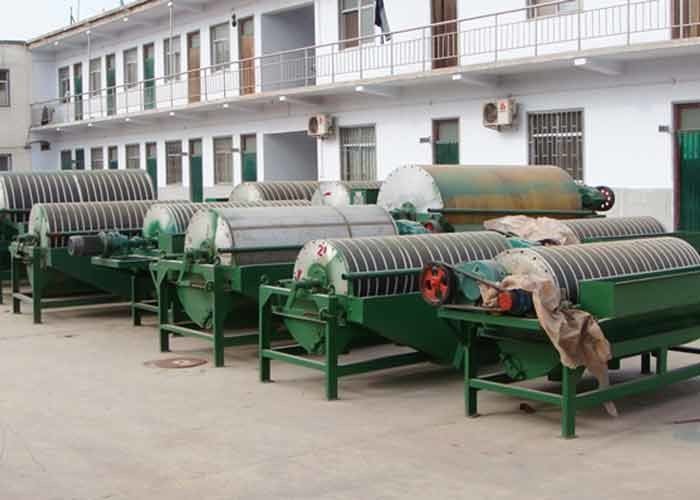

Iron Sand Wet Type Magnetic Separator Ore Dressing Plant

Wet Type Magnetic Separator Machine For Raw Hematite Ore Iron Sand Separating Process

Structure of Hematite Ore Magnetic Separator

A basic magnetic separator consists of a magnet of some kind.
Permanent magnet drum magnetic separator can be divided into 3 kinds according to its structure at the bottom of different:
downstream type, counter-current type and half counter-current (semi counterflow) type.

Magnetic separator for particle size less than 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials, wet magnetic separation, but also for coal, non-metallic minerals, building materials and other materials in addition to iron work.

Application of Magnetic Separator

Magnetic Separator are widely used for the wet magnetic separation of materials which particle size less than 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite, etc, but also used for deironing operations of coal, non-metallic minerals, building materials and other materials.

Technical parameters of Hematite Ore Magnetic Separator

Model	Cylinder diameter(mm)	Tube length(mm)	Cylinder speed(r/min)	Feed size(mm)	Magnetic field strength(GS)	Capacity(t/h)	Power(KW)
CTB6012	600	1200	<35	1-0	1400	3	1.5
CTB6018	600	1800	<35	1-0	1500	6	2.2
CTB7518	750	1800	<35	2-0	1500	10	2.2
CTB9018	900	1800	<35	2-0	1600	20	3
CTB9021	900	2100	<35	2-0	1600	30	3
CTB9024	900	2400	<28	2-0	1600	35	4
CTB1018	1050	1800	<20	2-0	1700	40	5.5
CTB1021	1050	2100	<20	2-0	1700	45	5.5
CTB1024	1050	2400	<20	2-0	1700	50	5.5
CTB1218	1200	1800	<18	3-0	1700	60-120	5.5
CTB1224	1200	2400	<18	3-0	1700	70-150	7.5
CTB1230	1200	3000	<18	3-0	1700	80-180	7.5

Type	capacity(t/h)	Magnetic intensity (OE)	power(kw)	weight(T)
CTB600×900	8-15	1450	1.1	0.91
CTB600×1800	15-25	1500	2.2	1.34
CTB750×1200	25-30	1550	2.8	1.49
CTB750×1800	30-45	1550	3	2.05
CTB900×1800	35-60	1550	4	3
CTB1050×2400	55-90	1550	5.5	5
CTB1200×3000	80-150	1550	7.5	7.8
CTB1500×3000	120-200	1550	11	9.6

Specifications

1. Feeding particle size less than 3mm
2. Used in Magnetite, pyrrhotite, roasted ore, ilmenite and other materials
3. In wet way

Advantages of Hematite Ore Magnetic Separator

1. Magnetic separator can be working under high temperature.
2. Max. Magnetic intensity: 8,000 OE.
3. Simple structure makes it easy to operate and maintain.
4. Energy saving & high-efficiency.
5. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
6. Also has disaggregating function for sticky and poor-fluidity powders.
7. Stainless steel machine and full-closed operation enable an easy clean.
8. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.

Magnetic Separator for Hematite Ore Magnetic Separating Process
