    600 TPD Cement Active Lime Calcination Rotary Kiln

    Active Lime Production Line Lime Calcination Rotary Kiln Lime Kiln


    Henan Zhongke Engineering & Technology Co., Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department.

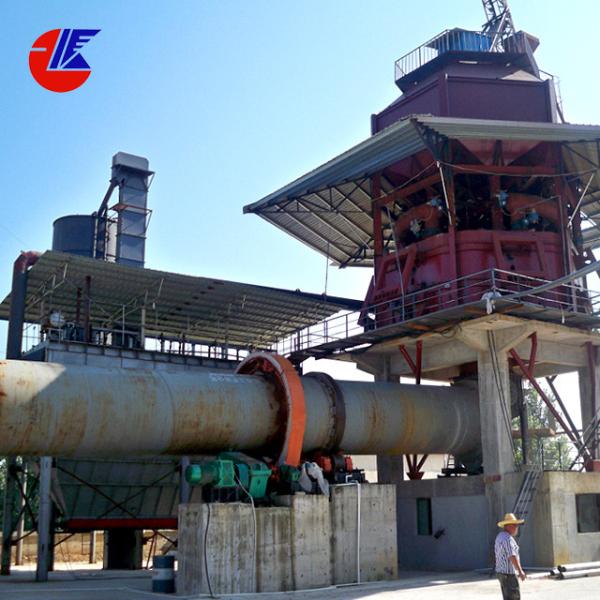

    Rotary kiln has simply structure, easy operation in producing, less wearing parts, high efficiency,it's used in the cement plant to calcine high grade cement, at the same time can be used in metallurgy,chemical,constructure ect. rotary kiln features in strong structure, stable operation, high-quality products from the kiln, and we can offers advanced efficient shaft preheater, five-grade cyclone preheater.


    Design Capacity(t/d)150300600
    ProductActive LimeActive LimeActive Lime
    Pre-heaterVertical Pre-heaterVertical Pre-heaterVertical Pre-heater
    Rotary KilnSize(m)Φ2.5×40Φ3.3×50Φ4×60
    Effective Volume(m3)142292575
    Burning temperature≤1250≤1250≤1250
    CoolerGrate CoolerGrate CoolerGrate Cooler
    FuelGas
    Coal Dust
    Gas
    Coal Dust
    Gas
    Coal Dust
    Heat Consumption
    (kJ/kg Cao)
    5000-53005000-53005100

    Process flow introduction: Qualified limestone is deposited in the storage bin, hoisted by the elevator and transported into the top bin of preheater. The top storage bin of the pre-heater is consisted of top and bottom level gages controlling the feeding. And then through the feed tube the limestone is distributed uniformly to all the inside chambers of the pre-heater.

    The limestone in preheater is heated to about 900°C by 1150°C kiln gas, about 30% decomposition, pushed into rotary kiln by the hydraulic push rod, and sintered and decomposed into CaO and CO2 in the roatary kiln. After decomposition, the produced limestone goes into the cooler, cooled down to 100°C by the entered cold air and discharged out. The 600 ° C hot air after heat exchange goes into the kiln and combusts with gas. The Exhaust gas goes into the bag filler through draught fan when added into the cold air, and enter the chimney through the exhaust fan.

    The lime out of the cooler is transported into lime storehouse by vibration feeding machine, chain conveyor, bucket elevator, belt conveyor according to the customer’s request for whether making the screening other procedures.
