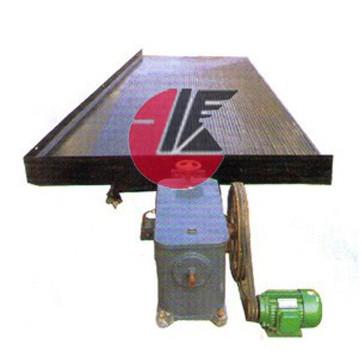

1.1kw Energy Saving Table Concentrator Ore Dressing Plant

Table Concentrator

table concentrator is one of the gravity separator machines, widely used for selecting tungsten, tin, tantalum niobium,gold, silver, lead, and other rare metals ore, as well as separating Fe, Mn ore and coal.when processing tungsten, tin ore, the effective recycling granularity scope is 2-0.02mm..pyrite(4-0.02mm)

Also used for processing coarse sand (2-0.5mm), fine sand (0.5-0.074mm), slime (0.075mm-).

The table dressing process carries on the complex inclined bed surface, and the ore grains are sent in ore trough from the bed surface.

it supplies crosswise washing for the water trough, thus the ore grains laminate surface and according to the proportion and granularity, make the longitudinal motion and transversal motion along the bed surface.

in the function of the gravity, the crosswise running water momentum, and the inertia and friction force from the reciprocating motion asymmetry of bed surface.

Therefore, the ore grain of different proportion and granularity fan-shaped flows off along respective movement direction from A to B side.

separately discharged from the ore concentrate end and the debris side different area, finally divided into the ore concentrate, the middling and the debris.

Technical parameter

Name		unit	Coarse deck	Fine sand deck	Slime deck
Deck size	Length	MM	4450	4450	4450
	Technical parameter	MM	1855	1855	1855
	Concentrate end width	MM	1546	1546	1546
Maximum Feeding Size		MM	2	0.5	0.15
Feeding Amount		T/d	30-60	10-20	15-25
Feeding Density		%	25-30	20-25	15-25
stroke		MM	16-22	11-16	8-16
Frequency		F	15-48	48-53	50-57
Water added		T/d	80-150	30-60	10-17
Transverse slope of Deck		degree	2.5-4.5	1.5-3.5	1-2
Longitudinal slope of Deck		%	1.4	0.92	----
wedge out of deck		degree	32-42	40	42
Beneficiation Area		----	7.6	7.6	7.6
Cross-section Shape of Deck		----	2.6	2.6	2.6
Motor Power		KW	1.1	1.1	1.1
