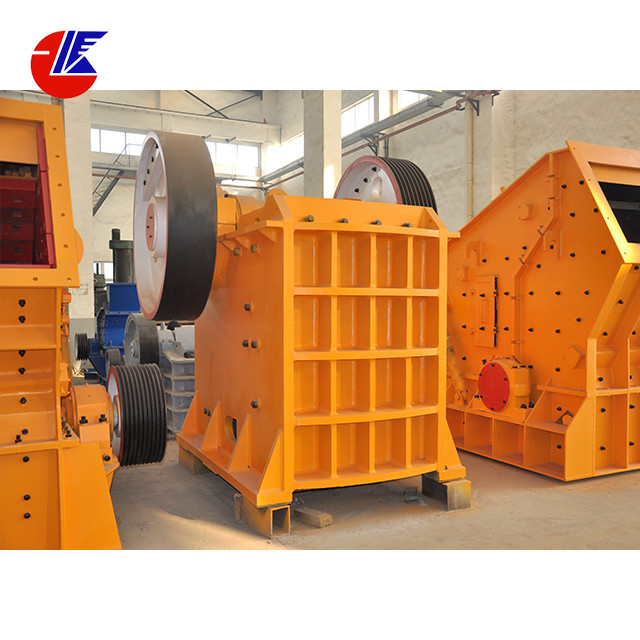

PE Small Jaw Crusher Stone Crusher Machine
Features of jaw crusher machine
Technical Parameter of jaw crusher
| Model | Feed opening
(mm) | Max.feeding size
(mm) | Adjusting range of discharge opening
(mm) | Processing capacity
(t/h) | Rotation speed of eccentric shaft
(r/min) | Motor power
(kw) | Total weight
(t) | Dimensions
(L×W×H)
(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90 | 29 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 380 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 20-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
Brief introduction of jaw crusher machine
Jaw crusher is widely used in construction, mining, chemical
industries and other industries which need a powerful machine to
crush rocks and stones. Generally, jaw crusher can be used for both
primary and secondary crushing. It can be used to crush the hardest
rock and the materials with particle size around 125~1020mm and
compressive strength less than 320MPa.
Henan Zhongke Engineering & Technology Co., Ltd. is an import and
export company, which is specialized in mining machinery,
metallurgical machinery and building materials equipment
manufacturing. The head quarter located in Zhengzhou High-Tech
zone.The company business scope include: jaw crusher, impact
crusher, hammer crusher, cone crusher, ball mill, rod mill, ceramic
ball mill, vibrating feeder, vibrating screen, belt conveyor,
mineral ore separating machine, magnetic separator, flotation
machine, classifier, spiral chute, rotary dryer, rotary kiln. We
also can offer sand and stone production line, crushing and
grinding plant, ore beneficiation line, A A C (aerated concrete
block) production plant, small cement plant, active lime production
line and so on.
Working principle of jaw crusher machine
Motor drives belt and belt pulley, makes moving jaw up and down
through eccentric shaft. When the moving jaw is up, the angle
between lining plate and moving jaw becomes large, and this will
push moving jaw plate close to the fixed jaw plate. During this
process, the material is crushed and ground, thus the crushing will
be done. When the moving jaw is down, the angle between lining
plate and moving jaw becomes small, the moving jaw plate will leave
the fixed jaw plate on account of the effect of pulling bar and
spring, and then the crushed material will be discharged from the
lower opening of the crushing room.
Company Information
Henan Zhongke Engineering & Technology Co., Ltd. is specialized in
large and medium-sized series of mining machinery, metallurgical
machinery, building materials equipments, cement equipment and
rotary kiln. R&D, production and marketing into a joint-stock
enterprise, our company is headquartered in Zhengzhou Country’s
High-tech Industrial Development Zone, which consists of three
branches, a research and development department.
We pay attention to basic management, build enterprises quality
management system; the work site realizes fixation management; the
logistic enjoys ABC management; the office achieves computer
automatization; the product development process design adopts C A
D, C A P P technology. Zhongke Machinery can provide high quality
products, as well as customized optimized technical proposal and
one station after-sale service.
The company machine quality and service help us gain reputation in
the mining machines market. So far we have exported to Canada,
Ecuador, Indonesia, Nepal, India, Russia, Uzbekistan, Honduras,
Zimbabwe, Nigeria, Malawi, and the business keeps expanding.
