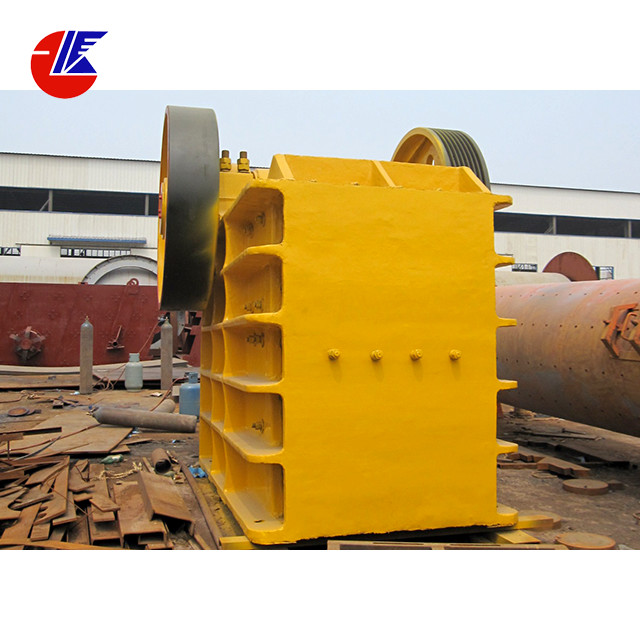

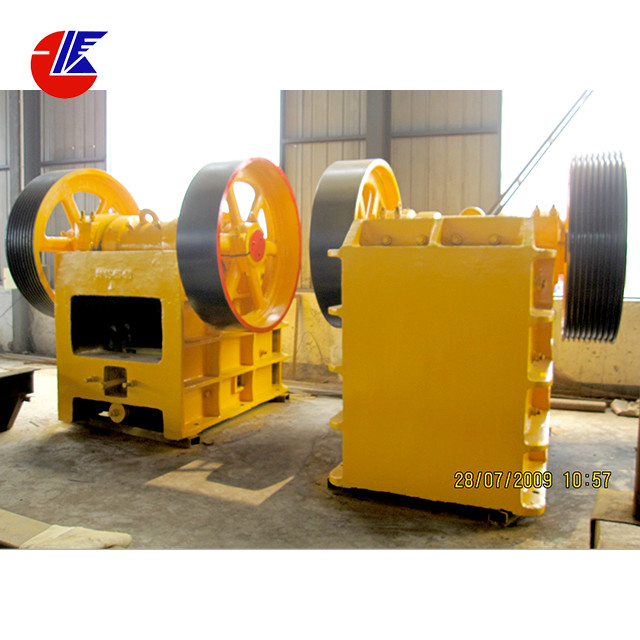

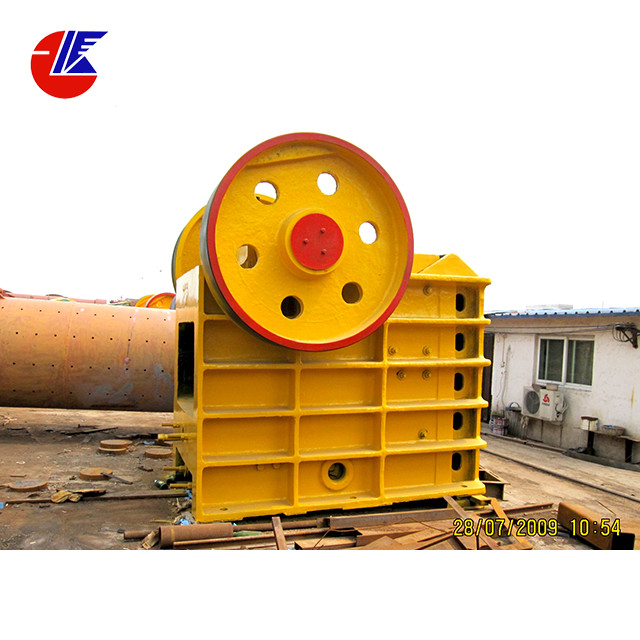

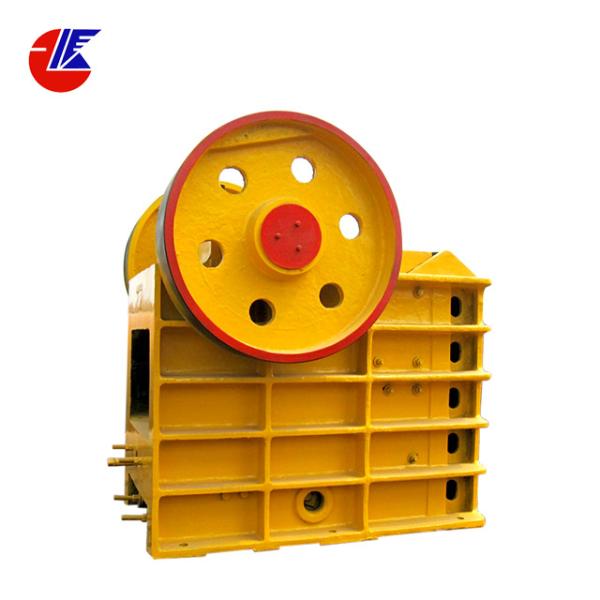

PE Small Jaw Crusher Stone Crusher Machine
Features of jaw crusher machine
- Deep crushing cavity without dead zone, improve the feeding
capacity and output.
- Before stopping, stop feeding, and turn off the power after the
materials in the crushing cavity are completely discharged.
- During crushing, if the machine stops due to the blockage of
materials in the crushing chamber, the power supply should be
turned off immediately to stop the operation, and the materials in
the crushing chamber can be cleaned up before starting again.
- The gaskets adjusting device of discharging opening, reliable and.
convenient, with large adjusting range, increases the flexibility
of the equipment.
- Large adjustable scope of discharge opening can meet the different
requirements of customers.
- The materials to be crushed should be evenly added into the crusher
cavity. Side feeding or full stacking should be avoided to avoid
unilateral overload or overload.
Technical Parameter of jaw crusher
| Model | Feed opening
(mm) | Max.feeding size
(mm) | Adjusting range of discharge opening
(mm) | Processing capacity
(t/h) | Rotation speed of eccentric shaft
(r/min) | Motor power
(kw) | Total weight
(t) | Dimensions
(L×W×H)
(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90 | 29 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 380 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 20-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
Brief introduction of jaw crusher machine
Jaw crusher is widely used in construction, mining, chemical
industries and other industries which need a powerful machine to
crush rocks and stones. Generally, jaw crusher can be used for both
primary and secondary crushing. It can be used to crush the hardest
rock and the materials with particle size around 125~1020mm and
compressive strength less than 320MPa.
Working principle of jaw crusher machine
Motor drives belt and belt pulley, makes moving jaw up and down
through eccentric shaft. When the moving jaw is up, the angle
between lining plate and moving jaw becomes large, and this will
push moving jaw plate close to the fixed jaw plate. During this
process, the material is crushed and ground, thus the crushing will
be done. When the moving jaw is down, the angle between lining
plate and moving jaw becomes small, the moving jaw plate will leave
the fixed jaw plate on account of the effect of pulling bar and
spring, and then the crushed material will be discharged from the
lower opening of the crushing room.
Company Information
Henan Zhongke Engineering & Technology Co., Ltd. is an import and
export company, which is specialized in mining machinery,
metallurgical machinery and building materials equipment
manufacturing. The head quarter located in Zhengzhou High-Tech
zone.The company business scope include: jaw crusher, impact
crusher, hammer crusher, cone crusher, ball mill, rod mill, ceramic
ball mill, vibrating feeder, vibrating screen, belt conveyor,
mineral ore separating machine, magnetic separator, flotation
machine, classifier, spiral chute, rotary dryer, rotary kiln. We
also can offer sand and stone production line, crushing and
grinding plant, ore beneficiation line, A A C (aerated concrete
block) production plant, small cement plant, active lime production
line and so on.
We pay attention to basic management, build enterprises quality
management system; the work site realizes fixation management; the
logistic enjoys ABC management; the office achieves computer
automatization; the product development process design adopts C A
D, C A P P technology. Zhongke Machinery can provide high quality
products, as well as customized optimized technical proposal and
one station after-sale service.
