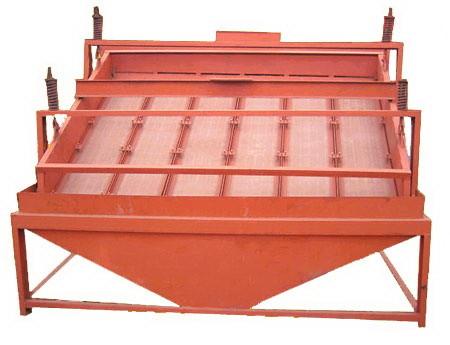

High Frequency Screen
High-frequency screen consists of vibration exciter, ore slurry
distributor, screen frame, machine frame, suspension springs and
sieve, etc.
Features: High efficiency, small amplitude and high frequency of
screening. Regarding to the working principle, it differs from the
conventional screens. By means of high frequency, it breaks the
surface tension of slurry, together with small granularity’s high
speed vibration on sieve cover, accelerates the separating of
large-density useful mines and increases the contacting probability
of the materials smaller than output granularity and the sieve
pore. Therefore, it creates good condition for separating
materials, especially for the small size.
Main technical parameters:
| model | Screen area (m2) | Thickness of input material (%) | Processing capacity (t/h) | power (kw) |
| GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
| GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
| GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
| GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
Specifications
High efficiency,small amplitude and high frequencu of screening, it
can make the materials smaller than the output granularity.
High-Frequency Screen Structure
High-Frequency Screen consists of vibration exciter, ore pulp
distributor, screen frame, machine
frame, suspension springs and sieve, etc.
High-Frequency Screen Application
This series screens are always used in processing minerals such as
ferrous metals including hematite
& magnetite and nonferrous metals including Lead, Zinc, Gold and
Silver etc. This machine works in a
re-circulating network with ball mill, which can upgrade the
fineness of ferrous and nonferrous
metals. Its efficiency is twice as that of Spiral Classifier.
Product Discription of High Frequency Screen
Highfrequency screen consists of vibration exciter, ore slurry
distributor, screen frame, machine frame,
suspension springs and sieve. It has the features of small
amplitude and high frequency of screening.
Regarding to the working principle, it differs from the
conventional screens. By means of breaking of
the surface tension of slurry, together with small granularitys
high speed vibration on sieve cover and
accelerates the separating of large-density useful mines and
increases the contacting probability
of the materials smaller than output granularity and the sieve
pore. Therefore, it creates good
condition for separating materials, especially for the small size
